Terra-i results can be used to estimate impacts of historic deforestation on ecosystem services using WaterWorld for water and soil erosion impacts and Costing Nature for impacts on water , carbon (storage and sequestration), hazard mitigation and other services and measures of conservation priority.
Run a baseline (representing year 2000) and then choose Policy Options>Land Use Change and set a land use change scenario based on Terra-i from the drop-down list.

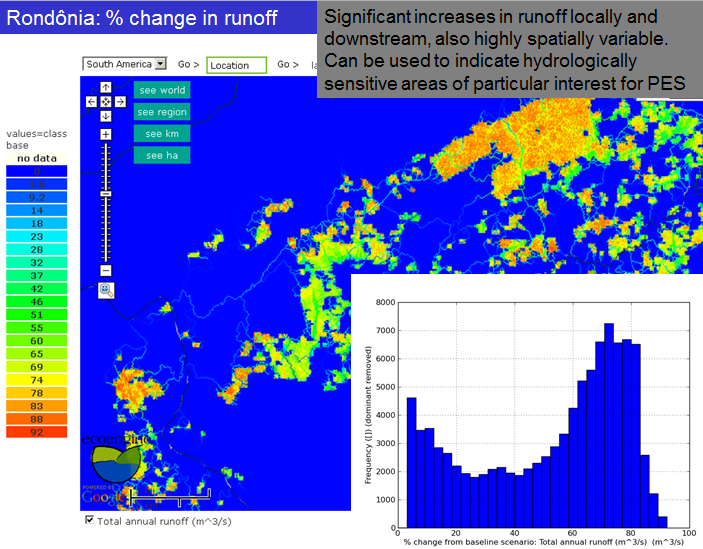

WaterWorld is a global version of the AguAAndes model which is a testbed for the development and implementation of land and water related policies globally, enabling intended and unintended consequences to be tested in silico before they are tested in vivo . It incorporates detailed spatial datasets at 1-square km and 1 hectare resolution for the entire World, spatial models for biophysical and socioeconomic processes along with scenarios for climate, land use and economic change. A series of interventions (policy options) are available which can be implemented and their consequences traced through the socio-economic and biophysical systems. The model integrates with a range of geobrowsers for immersive visualisation of outcomes.
Costing Nature is a web based tool for analysing the ecosystem services provided by natural environments,identifying the beneficiaries of these services and assessing the impacts of human interventions. This PSS is a testbed for the development and implementation of conservation strategies focused on sustaining and improving ecosystem services. It also focused on enabling the intended and unintended consequences of development actions on ecosystem service provision to be tested in silico before they are tested in vivo . The PSS incorporates detailed spatial datasets at 1-square km and 1 hectare resolution for the entire World, spatial models for biophysical and socioeconomic processes along with scenarios for climate and land use. The PSS calculates a baseline for current ecosystem service provision and allows a series of interventions (policy options) or scenarios of change to be used to understand their impact on ecosystem service delivery.
From May 8-12, 2017, the Terra-i team, together with staff from the DGOTA of Peru's Ministry of Environment, carried out the first field validation of vegetative land cover changes detected during Terra-i monitoring for 2016 and 2017, using the technology UAV. This work was carried out under the framework of the project “Sustainable Amazonian Landscapes”. The team carried out over-flights with a Phantom 3 advanced rotor drone and a fixed-wing Ebee drone in seven townships of Yurimaguas. The objective of this work was to recognize the dynamics of land cover and land use changes in the region while at the same time to validate the accuracy of the detections of forest loss being monitored by Terra-i in Yurimaguas.
The Terra-i team has worked hard on renovating Terra-i’s website since early this year. A set of new features on the website provides interactive contents and facilitates adaptation to the mobile devices of our users. The fresh website was developed using the latest update of an open-source, Java-based web system, Magnolia CMS 5.4.4. This update was customized to add different categories of interaction such as news, vegetation cover changes, and information, among others.
Globally more than 1 billion people depend on forests for their livelihoods. Forests play a crucial role in climate regulation, ecosystem services provision and regulation, water supply, carbon storage and many other functions that support biodiversity. Currently the global rate of deforestation is substantial, and there is a growing need for timely, spatially explicit data that flag natural vegetation changes due to human activities.
The latest update of Terra-i has been used with the Co$ting Nature ecosystem services assessment tool to understand the impacts of recent forest loss in Colombia on biodiversity and ecosystem services.
During the 1st and 12th of June 2015, the Terra-i team, together with the Instituto de Investigaciones de la Amazonía Peruana (IIAP) and the Universidad Nacional Agraria La Molina (VLIR-UNALM), conducted the second field validation of the data produced by the Terra-I system. This time, the study area was the Yurimaguas district, Alto Amazonas province, Loreto region (Peru). We used information on populated places, main roads, rivers and information on land cover changes detected for 2013, 2014 and 2015 to define the 65 sampling points (or Terra-I pixels) for the validation process (Figure 1).
